Specifications
Manufacturer: D-Link Systems, Inc
Manufacturer Part Number: DGS-1510-28X
Manufacturer Website Address: http://www.dlink.com
Brand Name: D-Link
Product Line: SmartPro
Product Series: DGS-1510
Product Model: DGS-1510-28X

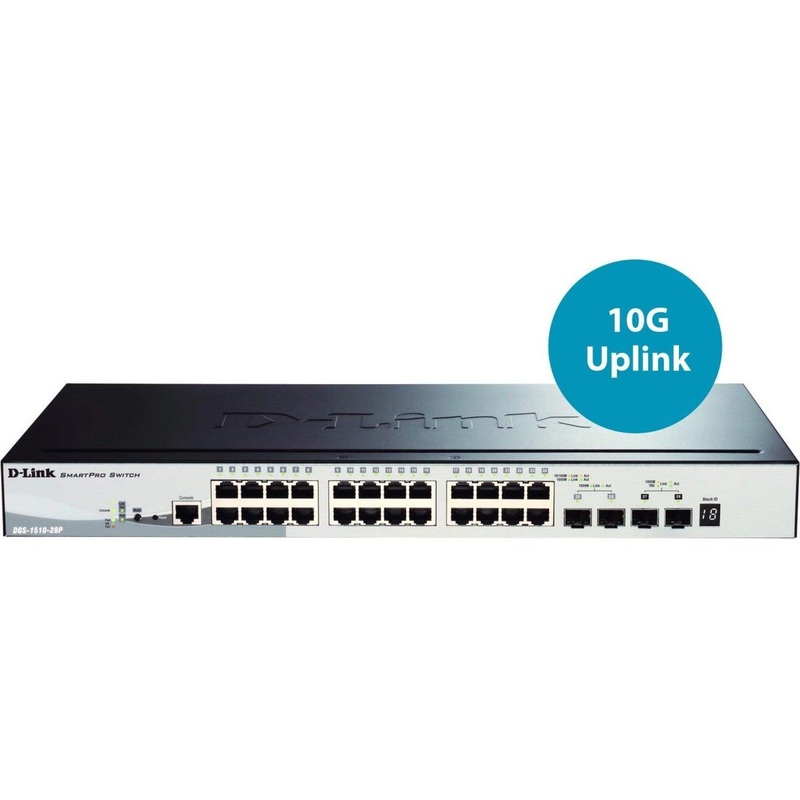

Product Name: 28 Port Gigabit SmartPro Switch
Marketing Information: The DGS-1510 Series is D-Link’s latest generation of SmartPro switches with 10G port connectivity, making them ideal for deployment in SME/SMB core environments. The DGS-1510 Series provides a reliable, scalable, and modular interconnection between core switches and edge switches with rich capabilities and simplified flexibility. Available in 16, 24 and 48 10/100/1000 Mbps port models, these switches also include four optical ports – including 2 Gigabit SFP and 2 10G SFP+ ports. The 24 and 48 port versions are also available with 4 10G SFP+ ports instead of the 2 Gigabit plus 2 10G configuration.
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 28
Uplink Port: No
Modular: No
Stack Port: Yes
Port/Expansion Slot Details:

• 24 x Gigabit Ethernet Network
• 4 x 10 Gigabit Ethernet Expansion Slot

Media & Performance
Media Type Supported: Twisted Pair
Ethernet Technology:

• Gigabit Ethernet
• 10 Gigabit Ethernet

Network Technology:

• 10/100/1000Base-T
• 10GBase-X

I/O Expansions
Number of Total Expansion Slots: 4
Expansion Slot Type: SFP+
Shared SFP Slot: No
Number of SFP+ Slots: 4
Network & Communication
Layer Supported: 3
Management & Protocols
Manageable: Yes
Power Description
PoE (RJ-45) Port: No
Power Source: Power Supply
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Height: 44 mm
Width: 440 mm
Depth: 210 mm
Weight (Approximate): 2 kg
Warranty
Limited Warranty: Lifetime
